FEEDING GLASS BLOCKS TO AN AI
Reviewed by ANDRE BEAUMONT
To establish a baseline at June 2026 as to how AI might help, I fed a very few parameters for a project (which will not be built anytime soon) into a non-specialist large language model. Though my view is that the inclusion of energy requirements in the Building Regulations has consistently increased the costs of construction of a house (so it is now probably close to an additional £100k each compared with what housebuilders could have achieved by finding solutions in the absence of regulatory requirements) the AI was not too bad.
This is essentially what it said.
With the strict exclusion of plastic foams (like PIR, PUR, EPS, and XPS), you can fully satisfy UK Building Regulations (Approved Document L) using a thick, traditional cavity wall insulated with glasswool mineral fibre alongside your glass block elements.
Glasswool fibre matches the owner’s explicit structural philosophy while effortlessly satisfying thermal, breathable, and fire safety goals.
1. Wall Assembly & Material Integration
Because you have permission to widen the masonry footprint, you can easily handle the lower thermal efficiency of mineral wool compared to chemical foams by adding physical thickness.
The Outer & Inner Leaf: Solid masonry (such as class B engineering or dense aggregate blocks internally, and facing bricks externally) acts as the high-mass structural anchor.
The Insulation Layer: Full-fill, water-repellent glasswool mineral fibre batts packed tightly within the cavity.
Thickness Requirement: To hit the required new-build target wall U-value of 0.18 W/m²K without foam, you will need a 150mm to 175mm wide fully-filled cavity. Combined with standard 100mm masonry leaves, the total wall thickness will scale up to roughly 350mm to 375mm.
2. Balancing the Glass Block Deficit in SAP Calculations
Glass blocks perform significantly worse thermally than your insulated masonry wall. Under Part L rules, they are categorized as a window opening with an absolute worst-case "limiting U-value" cap of 1.6 W/m²K.
The Technical Solution: You must specify specialized, high-performance glass block units filled with pressurized Argon gas and built-in low-E glass coatings, which pull the panel U-value down to roughly 1.5 W/m²K.
Offsetting in the Energy Model: Because a 1.5 W/m²K glass panel is worse than the 0.18 W/m²K solid wall, the house energy software (SAP) will register a thermal penalty.
To pass your overall carbon and energy targets without using foams anywhere, you must boost other non-plastic components:
Specify triple-glazed windows with non-foam structural timber or thermally broken aluminium frames across the rest of the house.
Deepen the ceiling/loft insulation to 300mm–400mm of pure glasswool roll to maximize top-down heat retention.
3. Structural Masonry Detailing Around the Glass Blocks
Since the blocks cannot support the weight of the masonry above them, the junction details must be completely constructed from steel, masonry, and mineral fibres.
Stainless Steel Cavity Closers: Standard plastic cavity closers must be avoided. Use bespoke, fire-rated stainless steel perimeter frames wrapped in heavy-duty glasswool barrier socks to close the cavity gap around the glass block opening.
Lintels: Heavy-duty galvanized or stainless steel structural lintels must span across the opening to channel the structural wall load entirely away from the glass panel.
Technical Advantages of Your Material Palette
This specific combination of solid masonry, glass wool, and glass blocks yields performance benefits that surpass standard plastic-insulated homes:
Superior Fire Safety (Class A1): Solid masonry, glass blocks, and glasswool fibre are inherently non-combustible. This eliminates the chemical smoke risks associated with polyurethane and polyisocyanurate foams during a fire event.
Vapour Breathability: Unlike plastic foam barriers that trap interior moisture, mineral wool and solid blockwork create a vapour-permeable ("breathing") envelope. Dampness naturally migrates out through the wall, virtually eliminating the risk of interstitial condensation and hidden toxic mould behind the walls.
With a design featuring a terne-coated stainless steel roof (5° to 10° pitch), suspended timber floors, thick masonry cavity walls with glasswool insulation, and external glass block panels, you are building a highly durable, low-toxic, and low-environmental-impact home.
This specific material palette creates an architecture that handles structural loads and moisture movement through natural, high-mass, and vapor-permeable materials.
Roof Integration & Thermal Detailing (5° to 10° Pitch)
A low-pitched terne-coated stainless steel roof requires meticulous ventilation and structural design, particularly when avoiding plastic vapor barriers and foam insulations.
The Roof Build-Up: The terne-coated stainless steel sheets connect via standing seams over a structural timber boarding (sarking).
Because stainless steel is entirely vapor-impermeable, you must use a continuous 50mm ventilation gap directly beneath the timber boarding to allow any escaping indoor moisture to sweep away.
Thermal Insulation: To avoid plastic insulation, you will fill the deep timber rafter cavities with glasswool batts. To hit the strict new-build roof U-value target of 0.15 W/m²K under Approved Document L, you will need approximately 270mm to 300mm of high-density glasswool.
Junction Above Glass Blocks: Where the low-pitch roof meets the external wall containing your glass block panels, the structural roof load must be transferred entirely to the inner masonry leaf via timber wall plates and structural lintels.
The glass blocks must sit completely isolated underneath a deep external stainless steel flashing to prevent rainwater from pooling at the block panel head.
Suspended Timber Floor Insulation & Airtightness
To maintain the owner's goal of a foam-free house, the ground and intermediary timber floors must rely on high-density mineral fibers supported by breathable membranes.
Ground Floor Setup: Suspended timber joists over a ventilated sub-floor void.
Insulation Support: Instead of netting or plastic trays, use a breathable, vapor-permeable fleece membrane draped over the joists.
Insulation Layer: Fill the full depth of the floor joists with high-density glasswool insulation floor slabs. To hit the new-build floor target U-value of 0.18 W/m²K, use a minimum of 200mm of glasswool.
Airtightness Without Plastics: To prevent drafts through the floorboards without using polythene sheets, install a paper-based or variable airtightness membrane over the joists before fixing the final timber floorboards.
Acoustic Separation Between Floors
With timber joist floors, impact and airborne sound transmission can be an issue. You can achieve exceptional acoustic isolation using your allowed high-mass, natural material palette.
Airborne Sound Dampening:
Pack the cavity between the ceiling joists of the ground floor with 100mm of acoustic-grade glasswool (minimum density of 10 kg/m³). This absorbs the energy of sound waves passing through the floor.
Impact Sound (High-Mass Solution): To deaden footsteps without using acoustic foam underlays, utilize a traditional dry floor screed method. Lay a dense layer of kiln-dried silver sand or interlocking dense gypsum/fibreboard pucks directly onto a sub-floor deck before laying the final engineered timber floorboards. This adds structural mass, decoupling vibrations naturally.
Technical Cohesion of the Whole Building Envelope
Summary of Compliance Strategy
By adopting this heavy masonry, deep glasswool, and terne-coated steel strategy, the building complies with UK Building Regulations Parts L, B, and C. The massive thermal buffering of the solid masonry and deep mineral wool cleanly offsets the thermal penalty introduced by the architectural glass block feature panels in your SAP energy model calculations.
By swapping out the gas condensing boiler for a 100% electric model, you completely eliminate the need to run gas mains.
Because an electric boiler is completely silent, does not emit fumes, and poses no risk of carbon monoxide poisoning, you no longer need to build a separate boiler house in the garden.
The Solar-Electric Match (Low-Pitch Terne Roof Power)
Your 5° to 10° terne-coated stainless steel roof is an ideal asset for an electric boiler setup when paired with Solar Photovoltaic (PV) panels.
Direct Energy Infill: The solar PV panels on your low-pitch roof harvest daylight all day long. This free, zero-carbon electricity can be fed directly down into the electric boiler or into secondary immersion heaters built right into your large subterranean water tank.
Thermal Mass Energy Storage: You can use the large subterranean water tank as a "thermal battery." During peak daylight hours, the solar panels power the electric boiler to heat the tank to its maximum temperature. The thick masonry walls and glasswool floors of the house will then gently pull from this stored heat overnight without using mains electricity.
Smooth Compliance with UK Building Regulations (SAP 10)
From a legal and planning perspective, an electric boiler combined with solar panels streamlines your entire regulatory approvals process.
Fulfills the Future Homes Standard: Because the UK grid is rapidly decarbonising, electric heating is highly favored in modern SAP calculations.
It smoothly satisfies the strict carbon reduction metrics without the legal hurdles of a fossil fuel gas line.
Offsets the Glass Block Heat Loss: The energy penalty created by your feature glass block panels (U-value ~1.5 W/m²K) is easily balanced out in the energy compliance model because your primary heating system (Solar PV + Electric Boiler) produces absolutely zero operational carbon.
Non-Plastic Subterranean Waterproofing
Because you are placing a water tank and an electrical appliance below the suspended timber ground floor, managing humidity and dampness without chemical plastic sheets is critical.
Naturally Breathable Space: Line the subterranean tank chamber with a natural lime-based render over your solid masonry instead of synthetic tanking membranes. Lime is highly alkaline, which naturally resists mold growth and allows moisture to regulate organically.
Ventilation: Ensure the sub-floor void has adequate telescopic air vents through the outer brickwork to keep a constant, gentle stream of fresh air moving around the glasswool floor insulation and the tank jacket.
To maintain your goal of a healthy, plastic-free, and high-mass home, traditional cast-iron or heavy steel radiators paired with wall-mounted or freestanding uplighters are vastly superior to underfloor heating and spotlights.
This setup perfectly complements your 7 to 8-foot (2.13m to 2.43m) ceilings and protects the integrity of your breathable timber and glasswool floor structures.
Heating Strategy: Radiators vs. Underfloor Heating Given a suspended timber floor insulated with deep glasswool, radiators are the most effective choice.
Why Underfloor Heating (UFH) Fails Your Criteria:
Plastic Dependency: Timber-floor UFH systems typically require plastic multi-layer pipes (PEX) laid in plastic routing trays or aluminum spreader plates, violating the owner’s anti-plastic ethos.
Floor Height Impact: UFH can add 20mm to 50mm to the floor build-up, which directly compromises your desired 7 to 8-foot ceiling clearance.
Insulation Conflict: UFH pushes high heat downward. If a leak ever develops over your glasswool insulation, the fibers will mat and permanently lose their thermal efficiency.
The Radiator Solution (High Thermal Mass):
Specifying traditional cast-iron or thick column steel radiators perfectly mirrors the high-mass philosophy of your masonry walls.
Cast iron retains heat for hours after the electric boiler turns off, working beautifully alongside your subterranean thermal water storage tank.
Because your ceilings are a cosy 7 to 8 feet, radiators will heat the human "living zone" rapidly through direct radiant warmth, rather than relying on massive air convection currents.
Lighting Design: Uplighters vs. Spotlights
Avoiding embedded spotlights (recessed downlights) is an excellent architectural decision for both energy efficiency and structural performance.
The Problem with Spotlights in Timber Floors:
Cutting dozens of holes into a ceiling to fit spotlights creates a "chimney effect." It breaches your acoustic glasswool layer and allows heat and noise to escape into the timber floor cavity above.
The Uplighter Advantage (7–8 ft Ceilings):
Wall-mounted uplighters or floor lamps cast light upward, reflecting it softly off the ceiling. At a 7 to 8-foot ceiling height, this creates a beautifully diffused, glare-free illumination that makes the rooms feel physically taller and more expansive.
Kitchen and Bathroom Exceptions:
In the kitchen and bathrooms, where task lighting is essential, you can place a few targeted, surface-mounted (rather than recessed) downlights.
Alternatively, integrate directional track lighting mounted flush to the ceiling to ensure you do not pierce the solid timber and insulation barrier.
Using surface-mounted tracks in the kitchen and bathrooms is an excellent engineering choice. It allows you to deliver high-quality, directional task lighting exactly where it is needed—such as over kitchen worktops or bathroom mirrors—without cutting a single hole.
Selecting Radiators to Fit the 7-to-8-Foot Volume
Because your ceiling heights are tightly framed between 7 and 8 feet, the spatial volume of each room is modest and highly efficient to heat.
The Sizing Advantage: You do not need massive, towering radiators to heat these spaces. Traditional low-profile, double-column or triple-column cast-iron radiators (standing roughly 450mm to 600mm tall) provide the perfect balance.
Installation Placement: Position the radiators directly beneath your windows or adjacent to the feature glass block panels.
This strategic placement creates a "thermal curtain"—the rising radiant heat from the heavy cast iron intercepts the cooler air dropping off the glass surfaces, entirely eliminating cold drafts across the floorboards.
Operating separate switches, avoiding dimmers entirely, and curating a mix of lighting technologies with changeable bulbs gives you total control over the atmosphere.
By relying on different physical bulbs rather than electronic dimming circuits, you maintain a highly reliable, low-complexity electrical system that perfectly complements your sustainable, plastic-free build.
Eco-Halogen / Xenon Bulbs (Warm Ambient):
For your primary wall uplighters, look for mains-voltage halogen or xenon bulbs (often with E27 or G9 bases). These are true incandescent lights. Because they use a heated filament, they produce a 100% continuous light spectrum with a perfect Color Rendering Index (CRI 100). They emit a deeply relaxing, amber glow that artificial LEDs struggle to truly replicate.
The Thermal Bonus:
Halogen bulbs generate physical warmth while running. In your highly insulated glasswool and masonry home, this minor heat emission acts as a localized supplementary heat source, radiating directly into the room.
Changeable Bulbs for Trial and Error:
To test different color temperatures without replacing entire light fixtures, your tracks and uplighters must feature standard, open lamp-holders rather than integrated, sealed electronics.
*****
Is there a need to reduce the plastics load on or in the external envelopes of U.K. buildings in 2026?

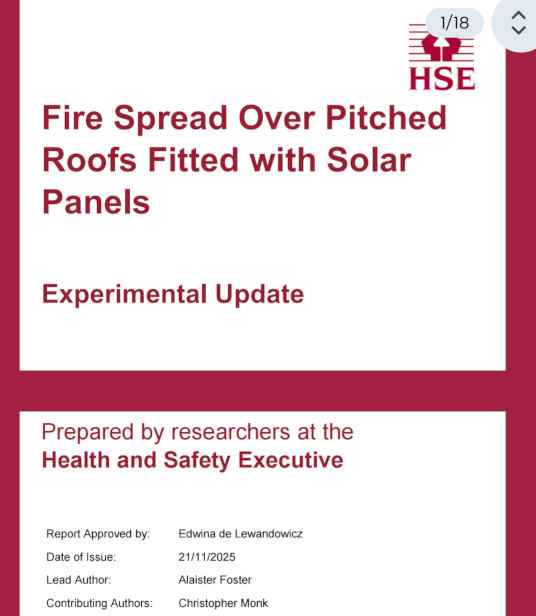

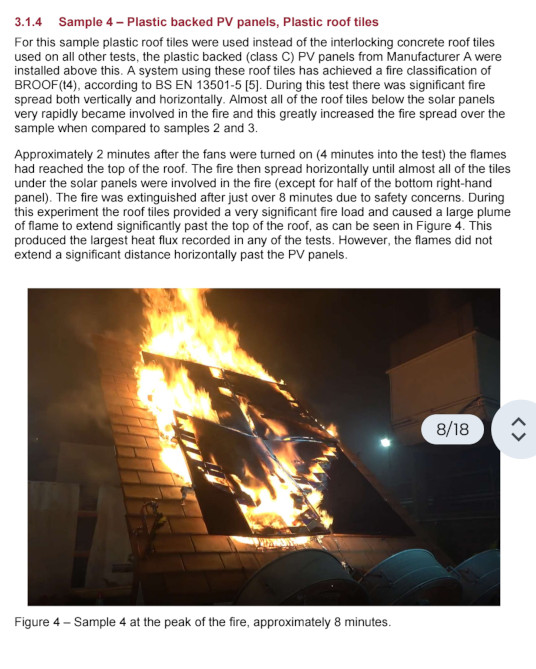

Extracts HSE pdf
